Model: JK
Product: High speed electric winch
Design standard: ISO
Rated load: 0.5~60t
Rope capacity: 20-500m
Working class: A5
Working speed: 20-35m/min
Control: Local control

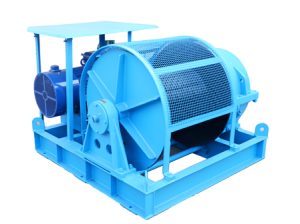

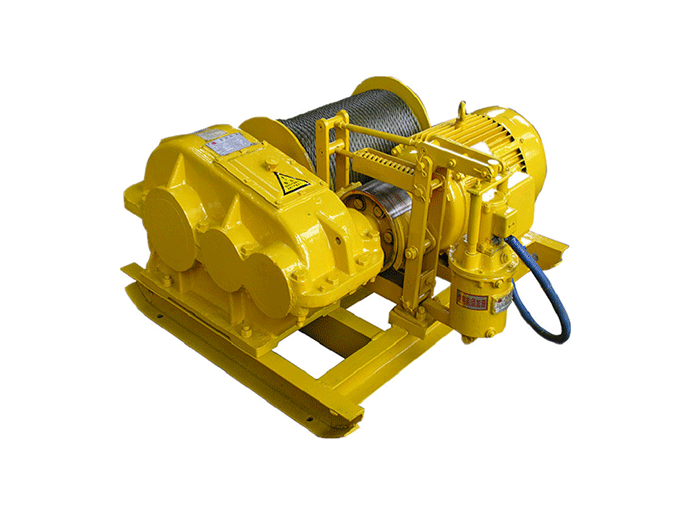

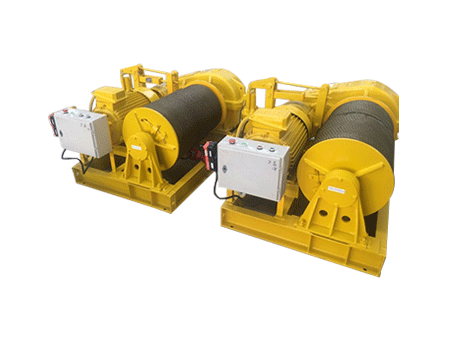

JK series fast speed electric winch with high speed and from 0.5T-10T load, the JK electric winch is mainly used in the large and middle sized concrete, steel structure and mechanical equipment installation and dismantling. The winch is suitable for all kinds of bridge, port, wharf and road and bridge engineering and large factories and mines engineering equipment installation.
The winch is a small, light weight equipment that uses a drum to wind a steel cable or chain to lift or tow heavy objects. You can lift heavy objects vertically, horizontally, or obliquely. It can be used alone or as a component of machinery such as lifting, road construction, mine hoisting, etc. It is widely used due to its simple operation, large cable winding volume, and convenient shifting.
| Model | rated load (KN) |
rated speed | rope capacity (m) |
rope diameter | electromotor type | electromotor power (kw) |
orm dimension (mm) |
weight (kg) |
| JK 1 | 10 | 22 | 100 | 9.3 | Y112M-4 | 4 | 620×701×417 | 300 |
| JK 1.6 | 16 | 24 | 120 | 12.5 | Y132S-4 | 5.5 | 945×996×570 | 500 |
| JK 2 | 20 | 24 | 120 | 13 | Y132M-4 | 7.5 | 945×996×570 | 550 |
| JK 3.2 | 32 | 25 | 200 | 15.5 | YZR180L-6 | 15 | 1325×1335×840 | 1200 |
| JK 5 | 50 | 30 | 200 | 21.5 | YZR225M-6 | 30 | 1900×1620×985 | 2400 |
| JK 8 | 80 | 25 | 250 | 26 | YZR280S-8 | 45 | 1533×1985×1045 | 3500 |
| JK 10 | 100 | 30 | 300 | 30 | YZR315S-8 | 55 | 2250×2500×1300 | 5100 |
With high versatility and generality.
With reasonable design and compact structure.
With small volume and light dead weight.
With large lifting capacity.
Easy to install, use and transfer.
