Product: Mine Winch
Model: JTP
Lifting Capacity (Ton): 1-1.6
Hoisting Height (m): 100-600
Lifting Speed (m/s): 1.2-4.1
Max. Static Tension (KN): 20-45
Anti-explosion: Yes
JTP Series Mine Winch is composed of power system, transmission system, working system, braking system, control operating system, indicating protection system and its accessory parts . It uses the electric motor power source, through the reducer, the spindle device constitutes the product efficient transmission system and the working system. The hydraulic station and brake device constitute the reliable brake system of the product. A complete product control operating system is composed of operating table and electrical control equipment. It is composed of depth indicator, encoder device etc.

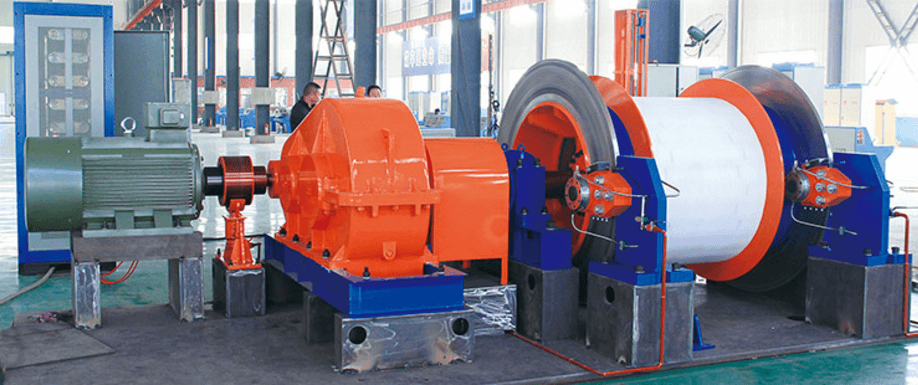

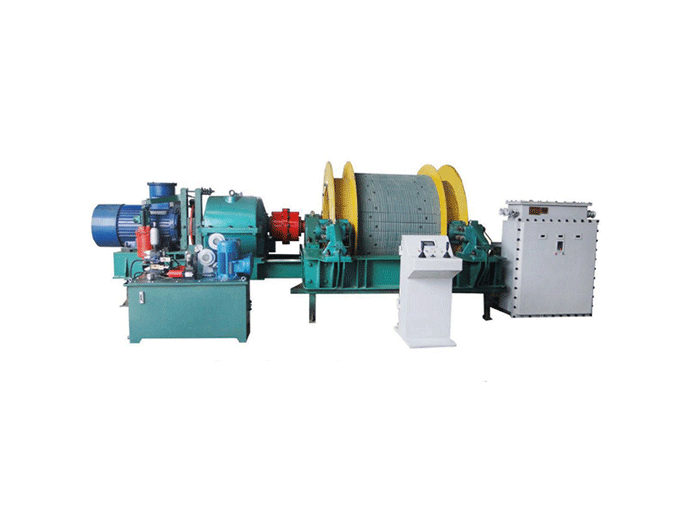

Mine Winch

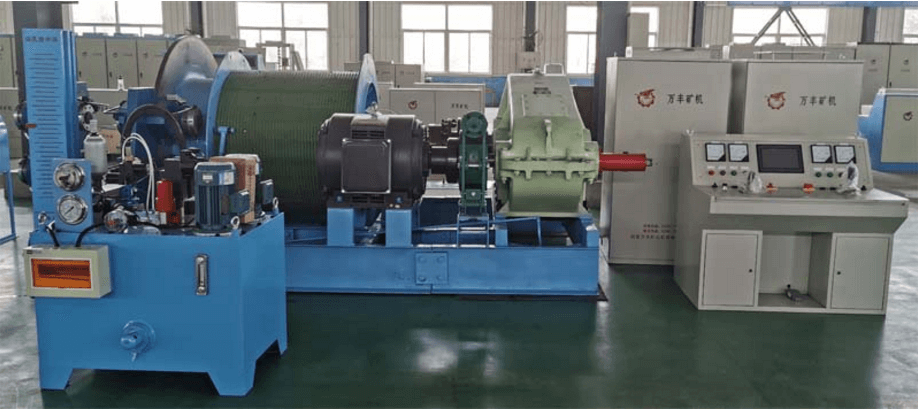

Mine Lifting Winch
KTDC——DZ Series AC Control System
KTDC——DZ series hoist AC control system is an advanced AC hoist electric control equipment designed and manufactured by Brayden Machinery. The stator (rotor) circuit is vacuumized, or the rotor circuit has no contact, the braking unit is fully digital, and the system control can be equipped with a networked system.

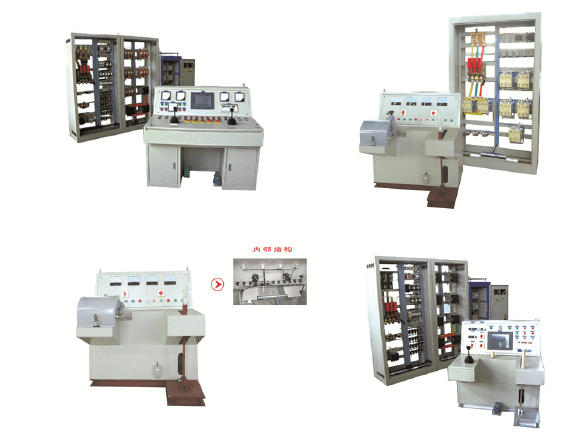

AC Electric Control System
Ztk(P) Series Frequency Conversion Control System
ZTK(P) series hoist frequency conversion control system design and manufacture of advanced AC hoisting electronic control equipment, perfect four quadrant operation makes the AC promotion easy to realize fully automatic operation without hands. Concise and lively two- or three-cabinet one-piece design, all-digital and full-network top equipment and upgrade-specific software perfectly reflect professionalism, safety, and maintenance-free.

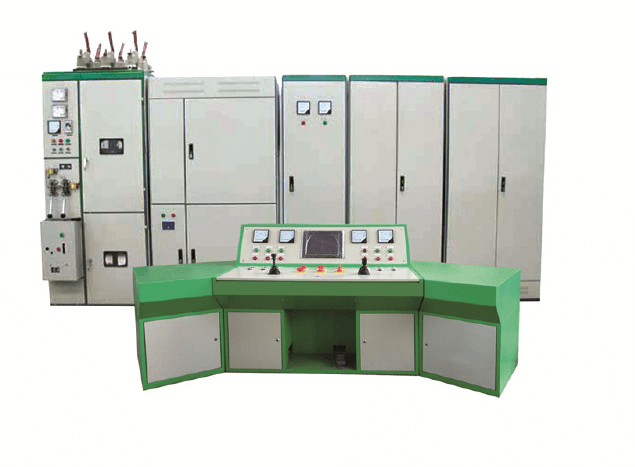

PLC High Voltage Electric Control Unit
Mine Hoist PLC (High Voltage) Electronic Control Equipment
This product is suitable for speed control of AC motors with power supply voltage of 6kv~10Kv and power supply power of 200~5000KW. Eight-level starting resistance, thyristor dynamic braking, and two-level hydraulic braking in coordination with machinery can realize the entire control process of acceleration, constant speed, deceleration and parking of the hoist.
Control Features:
● Realize the control instructions for the operation modes of the hoist, such as manual operation, maintenance, and low-speed crawling.
● Realize the speed control of the speed control system according to the given stroke.
● Perfect protection functions, such as double protection for overwinding, deceleration device, constant speed overspeed, 2 meters fixed point, etc.
● Protection function: Immediate brake application to stop, secondary brake application to stop.
| Model | Drum | Max. static tension of wire rope | Wire rope maximum tension difference | Max. lifting height | Wire Rope | Reduction ratio | Average lifting speed | Electric motors | Dimension | Weight | |||||||||||
| number | dia. | width | Center distance of two reels | manned | loaded | manned | loaded | One-layer | Two-layer | Triple Wrap | Max. diameter | Total breaking force | Rotation speed | Max. power | length×width×Height | ||||||
| mm | KN | m | mm | KN | m/s | r/min | KW | mm | kg | ||||||||||||
| 2JTP-1.6×1.2 | 2 | 1600 | 1200 | 1270 | 45 | 30 | 215 | 433 | 655 | 26 | 405 | 31.5 | 2.5 | 975 | 110 | 6768×2800×1950 | 17200 | ||||
| 2JTP-1.6×1.2P | 2 | 1600 | 1200 | 1270 | 45 | 30 | 215 | 433 | 655 | 26 | 405 | 31.5 | 2.5 | 975 | 110 | 6768×2800×1950 | 17200 | ||||
| 2JTP-1.6×0.9P | 2 | 1600 | 900 | 974 | 45 | 30 | 161 | 324 | 490 | 26 | 405 | 31.5 | 2.6 | 988 | 110 | 5905×2800×1925 | 15330 | ||||
| JTP-1.6×1.5 | 1 | 1600 | 1500 | / | 45 | / | 269 | 542 | 819 | 26 | 405 | 31.5 | 2.5 | 975 | 110 | 5780×2800×1950 | 14200 | ||||
| JTP-1.6×1.5P | 1 | 1600 | 1500 | / | 45 | / | 269 | 542 | 819 | 26 | 405 | 31.5 | 2.5 | 975 | 110 | 5780×2800×1950 | 14200 | ||||
| JTP-1.6×1.2P | 1 | 1600 | 1200 | / | 45 | 45 | 215 | 433 | 655 | 26 | 405 | 31.5 | 2.6 | 988 | 132 | 5224×2800×1925 | 14037 | ||||
| 2JTP-1.2×1 | 2 | 1200 | 1000 | 1070 | 15 | 21 | 15 | 21 | 169 | 341 | 516 | 20 | 279 | 31.5 | 1.9 | 967 | 55 | 5757×2680×1450 | 10027.2 | ||
| 2JTP-1.2×1P | 2 | 1200 | 1000 | 1070 | 15 | 21 | 15 | 21 | 169 | 341 | 516 | 20 | 279 | 31.5 | 1.9 | 967 | 55 | 5757×2680×1450 | 10027.2 | ||
| 2JTP-1.2×0.8P | 2 | 1200 | 800 | 874 | 30 | 20 | 137 | 275 | 415 | 20 | 270 | 31.5 | 1.9 | 987 | 55 | 5136×2680×1450 | 10386 | ||||
| JTP-1.2×1.2 | 1 | 1200 | 1200 | / | 15 | 21 | / | 205 | 413 | 625 | 20 | 279 | 31.5 | 1.9 | 967 | 55 | 4949×2680×2600 | 9711.2 | |||
| JTP-1.2×1.2P | 1 | 1200 | 1200 | / | 15 | 21 | / | 205 | 413 | 625 | 20 | 279 | 31.5 | 1.9 | 967 | 55 | 4949×2680×2600 | 9711.2 | |||
| JTP-1.2×1P | 1 | 1200 | 1000 | / | 30 | 30 | 169 | 341 | 516 | 20 | 279 | 31.5 | 1.9 | 985 | 75 | 4458×2680×1450 | 9627 | ||||
Multiple system protection, more security.
Adopting planetary reducer, the transmission ratio is large, the transmission efficiency is high, the operation is stable, the anti-impact and vibration ability is strong.
All digital AC variable frequency speed control system, Siemens PLC control circuit.
Drum is welded by low-carbon alloy steel plates, high adaptability and anti-fatigue strength.
The brake disc is made of 16Mn plate, which is resistant to deformation and abrasion.
