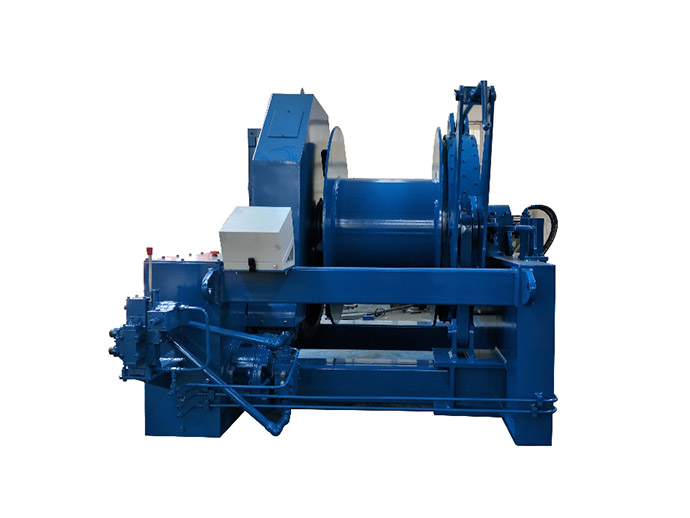

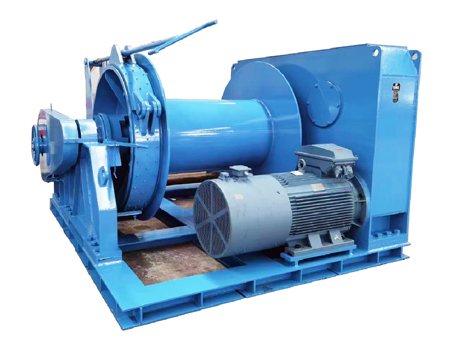

Product: Towing Winch
Working Load (ton): 10-200
Nominal Speed (m/min): 5-10
Drum Capacity (m): 50-300
Dia. of Rope (mm): 16-88
Driven Type: electric or hydraulic
No. of Drums: single or double
Warping Head: left hand, right hand or double
Brayden towing winches are fully customizable and are truly the workhorse of the industry. There are numerous configurations we can accommodate. From diesel, electric or hydraulic power sources to added fairleaders and warping heads, our tow winches offer high line-pull and braking power that makes them perfect for offshore towing.

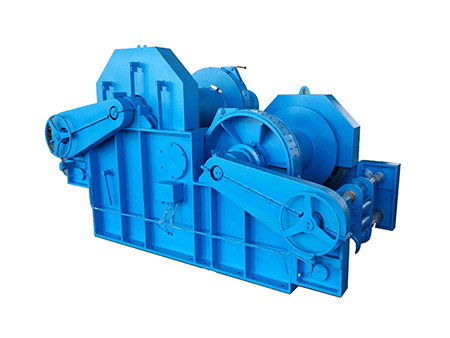

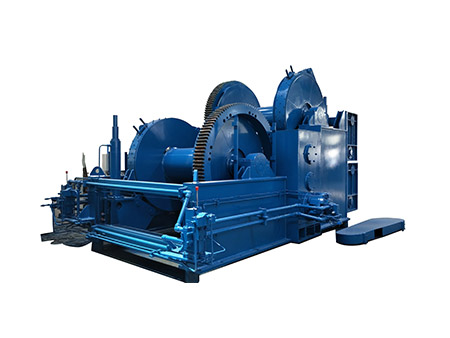

Single and double drums are available in either side by side or waterfall configuration, as well as multiple control stations. We use only the most durable marine grade components for our motors and electronics to survive the harsh marine environment. All electrical components comply with ABS, USCG, and IEEE-45 standards. Upgraded electronics allow for line tension monitoring, proximity sensors and data logging. Inquire about our tow packages today.
The main basis for designing towing winch is the maximum bollard pull, which is the pull generated when the main engine of the tug boat is with the maximum output power; other main performance parameters of the winch towing are directly or indirectly determined by the maximum bollard pull, such as drum rated load, rope diameter, drum diameter and support load. The load limiting device should be set for the winch, and the maximum setting value of it is 50% of the breaking load of the adopted wire rope.
| Model | Rated load | Rated speed | Rope capacity | Rope diameter | Motor power | Overall Dimensions |
| KN | m/min | m | mm | KW | mm | |
| YT1-16 | 160 | 7.5 | 500 | 28 | 45 | 3200x4050x2200 |
| YT1-20 | 200 | 7.5 | 500 | 30 | 55 | 3200x4050x2200 |
| YT1-25 | 250 | 7.5 | 550 | 32 | 75 | 3600x4350x2580 |
| YT1-32 | 320 | 7.5 | 600 | 36 | 90 | 3600x4500x2600 |
| YT1-40 | 400 | 5 | 750 | 40 | 90 | 3700x4800x2860 |
| YT1-50 | 500 | 5 | 750 | 52 | 110 | 3900x4900x3000 |
| YT1-63 | 630 | 5 | 850 | 54 | 110 | 4000x5100x3100 |
| YT1-80 | 800 | 5 | 1000 | 58 | 132 | 4250x5300x3300 |
| YT1-100 | 1000 | 5 | 1000 | 64 | 180 | 4550x5500x3450 |
| YT1-125 | 1250 | 5 | 1200 | 70 | 220 | 4850x5800x3700 |
| YT1-130 | 1300 | 5 | 1200 | 72 | 220 | 5000x6800x3800 |
| YT1-160 | 1600 | 4 | 1500 | 82 | 220 | 5200x7000x3860 |
| YT1-200 | 2000 | 4 | 1500 | 90 | 250 | 5350x7200x4000 |
| YT1-250 | 2500 | 4 | 1500 | 102 | 300 | 5500x7450x4200 |
| YT1-300 | 3000 | 4 | 1500 | 110 | 360 | 5800x7600x4200 |
Configuration: Single & Double drum configurations.
Cable Size: dia. 20-110 mm wire rope.
Auto/Manual: Automatic level wind systems, or manual push-rollers.
Drum Brakes: Manual and pneumatic drum brakes and clutches.
Gear & Shafts: Integral gearboxes.
Drive Type: Diesel, hydraulic and electric drives.
Other Features: Full range of control options.
