Model: JK-D
Product: Planetary Winch
Design standard: ISO
Rated load: 0.5~5t
Drum capacity: 10-100m
Working speed: 10-35m/min
Control: Pendant control

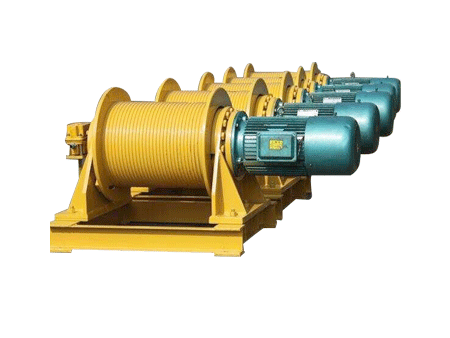

JK-D electric planetary winch is a new kind winch, this kind of winch is a new type of winch that adopts planetary gearing with small teeth difference. It features compact structure, smooth running, convenient operation, easy maintenance, low noise and long service life etc. It is an ideal replacement of traditional winch. This winch is widely applied for lifting and installing in many industries including construction, port, bride and metallurgy etc.
Because of small structure it is also called mini electric winch which has device that drives the drum and winds the rope by mechanical energy to complete the pulling work. It can be lifted vertically, pulled horizontally or tilted. The electric winch is composed of a motor, a coupling, a brake, a gearbox and a spool, which are installed together on the frame. Wire rope, electrical control box, handle switch, hook and wireless remote control can be added as required.
| basic data type |
rated load (KN) |
rated speed | rope capacity (m) |
rope diameter | rated power (kw) |
orm dimension (mm) |
weight (kg) |
| JK 0.75D | 7.5 | 30 | 100 | 9.3 | 9 | 900×340×400 | 165 |
| JK 1.25D | 12.5 | 46 | 120 | 11 | 11 | 1140×400×450 | 315 |
| JK 1.60D | 16 | 28 | 160 | 12.5 | 12.5 | 1200×440×480 | 350 |
| JK 2.0D | 20 | 36 | 190 | 13 | 13 | 1400×470×548 | 510 |
Fast, efficient, durable and reliable.
The appearance design is reasonable and the volume is small.
Smooth operation and low noise level.
Electronic control device, easy to operate.
Safe and reliable braking performance, simple maintenance.
