PRODUCT DESCRIPTION

YS series winch consists of various valve blocks (high-pressure shuttle valves with one-way or two-way balancing valves), hydraulic motors, multi-plate hydraulic brakes, planetary gear box and control valves. Since the winch has its own valve block, it not only simplifies the hydraulic system, but also improves the reliability of the transmission. YS type hydraulic winch has stable operation, low noise, high work efficiency, low energy consumption, compact size, beautiful appearance and competitive price in lifting and pulling work, it has been widely used in various lifting and material transferring equipment such as engineering drilling rigs, truck cranes, ship ports, oilfield drilling and mining, coal mines, engineering machinery and so on.

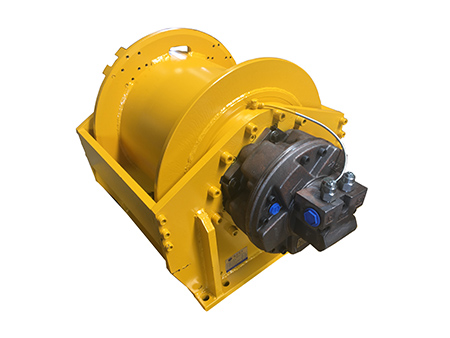

2ton Hydraulic Winch

10ton Hydraulic Winch

15ton Hydraulic Winch

Main FEATURES:

Winch brake is multi-disc brake, static braking torque 580N.M, Max. Back pressure should be less than 5 bar.

Use planetary gear box, with compact structure and light weight, grease lubrication for internal lubrication.
The total displacement represents the oil flow supply per revolution of the drum(ml/r).
The oil flow supply indicates the theoretical flow of the pump when the volumetric efficiency is considered to be 90-94%.
Maintain mandatory minimum of three wraps rope to be left on the drum at all times for safety.
This winch series can be equipped with tension measurement, rope guider, alarm system for the last three winding ropes, output shaft for rotation speed measurement, these items are optional.
