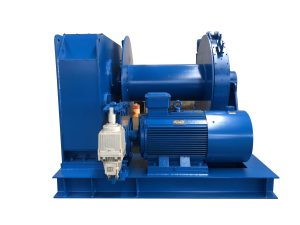

Product: Slipway Winch
Working Load (ton): 10-200
Nominal Speed (m/min): 5-20
Drum Capacity (m): 100-1500
Driven Type: electric or hydraulic
No. of Drums: single or double
Slipway winch refers to the winch that is used to move boats or ships to and out of the water by the slipway, also called as ship ramp or launch, on the dock or shipyard. The slipway is usually the inclined surface on which a boat or ship can be built or repaired. For large ships, the slipway should be with enough carrying capacity to support the ships after they are pulled out of the water and arrive at the slipway.
The winch is used to get the boats or ships safely ashore. There are slipway electric winches, hydraulic winches and diesel winches, they can be designed with different structures or components, for example some slipway winches have spooling device used to make sure that the wire rope can be stored on the winch drum orderly.
A slipway winch with good quality is very important, which can guarantee the safe pulling of a ship on the slipway. Many types of boats can be hauled by the winch along the slipway or on the trailer, such as small barges, sailing yachts, passenger ferries, fishing boats or other large ships. If a ship breaks downs and needs to be repaired, first it should be moved out of the water by a slipway winch via the slipway, then it can be checked and repaired, after finishing being repaired, the ship will be moved to the water according to need. The slipway windlass is important on the dock or shipyard used for moving boats or ships to and from the water.
| Model | Rated pull(KN) | Rated speed(m/min) | Drum capacity(mmxm) | Braking force(KN) | Motor power(KW) | Dimensions(mm) | Weight(Ton) |
| EXP-20 | 20 | 12 | 15×200 | 60 | 11 | 1800x1150x1825 | 2.5 |
| EXP-30 | 30 | 12 | 16×200 | 90 | 15 | 1950x1200x1900 | 3 |
| EXP-50 | 50 | 12 | 22×220 | 150 | 22 | 2050x1200x2000 | 3.5 |
| EXP-80 | 80 | 12 | 28×220 | 240 | 37 | 2175x1250x2100 | 4 |
| EXP-100 | 100 | 12 | 30×220 | 300 | 45 | 2320x1285x2175 | 5 |
| EXP-125 | 125 | 12 | 32×220 | 375 | 55 | 2385x1325x2250 | 5.5 |
| EXP-150 | 150 | 12 | 36×220 | 450 | 75 | 2500x1465x2400 | 6 |
| EXP-200 | 200 | 10 | 39.5×350 | 600 | 75 | 2600x1670x2625 | 9 |
| EXP-250 | 250 | 10 | 43×450 | 750 | 90 | 2850x1800x2900 | 12.5 |
| EXP-320 | 320 | 8 | 47×550 | 960 | 90 | 3050x1975x3100 | 18 |
| EXP-400 | 400 | 8 | 52×600 | 1000 | 110 | 3375x2050x3400 | 22 |
| EXP-500 | 500 | 9 | 56×600 | 750 | 180 | 4750x2800x3850 | 25 |
| Model | Rated load(KN) | Rated speed(m/min) | Rope capacity(m) | Rope diameter(mm) | Motor power(KW) | Overall Dimensions(mm) |
| YT1-16 | 160 | 7.5 | 500 | 28 | 45 | 3200x4050x2200 |
| YT1-20 | 200 | 7.5 | 500 | 30 | 55 | 3200x4050x2200 |
| YT1-25 | 250 | 7.5 | 550 | 32 | 75 | 3600x4350x2580 |
| YT1-32 | 320 | 7.5 | 600 | 36 | 90 | 3600x4500x2600 |
| YT1-40 | 400 | 5 | 750 | 40 | 90 | 3700x4800x2860 |
| YT1-50 | 500 | 5 | 750 | 52 | 110 | 3900x4900x3000 |
| YT1-63 | 630 | 5 | 850 | 54 | 110 | 4000x5100x3100 |
| YT1-80 | 800 | 5 | 1000 | 58 | 132 | 4250x5300x3300 |
| YT1-100 | 1000 | 5 | 1000 | 64 | 180 | 4550x5500x3450 |
| YT1-125 | 1250 | 5 | 1200 | 70 | 220 | 4850x5800x3700 |
| YT1-130 | 1300 | 5 | 1200 | 72 | 220 | 5000x6800x3800 |
| YT1-160 | 1600 | 4 | 1500 | 82 | 220 | 5200x7000x3860 |
| YT1-200 | 2000 | 4 | 1500 | 90 | 250 | 5350x7200x4000 |
| YT1-250 | 2500 | 4 | 1500 | 102 | 300 | 5500x7450x4200 |
| YT1-300 | 3000 | 4 | 1500 | 110 | 360 | 5800x7600x4200 |
Our winch can be designed and customized according to clients’ requirements with different load capacities.
Optional power modes: electric motor, hydraulic pump, diesel engine.
It is with excellent control system which can ensure the reliable work of the winch.
The winch has strong frame and good performance.
It is with long service life without failure.
All the components of the winch are in good condition and work safely and efficiently.
We customize the slipway winches to suit clients’ special requirements.
